在实木拼板的加工生产中，你是否常遇到这些难题：拼板的加工工艺及参数设置反复测试；拼板台面残留的胶渍难清理，清理一次至少也要一个小时；长短不一的工件卸料全靠人工搬运，不仅劳动强度大，还容易碰伤刚胶合好的板面；拼完的板材平面度不达标，砂光余量留得厚，原料损耗居高不下……这些看似细碎的痛点，实则正在不断吞噬车间的生产效率与利润空间。
If you work in solid wood panel edge glued joining, you've probably run into these challenges:
Endless trial and error with panel joining parameters — getting the processing settings right takes repeated testing;
Stubborn glue residue on the worktable — one thorough cleaning takes at least an hour;
Manual unloading of workpieces with uneven lengths — heavy physical labor that easily dents or scratches freshly glued panel surfaces;
Flatness that misses tolerance — forcing you to leave thick sanding allowances, which keeps material waste stubbornly high…
None of these problems feels huge on its own. Together, they quietly eat away at your shop floor's productivity — and your profit margins.
针对行业普遍存在的调试难、换产慢、精度不稳、运维成本高等核心问题，纪元高频全新升级的高频拼板机，从生产全流程出发给出了系统性解决方案。

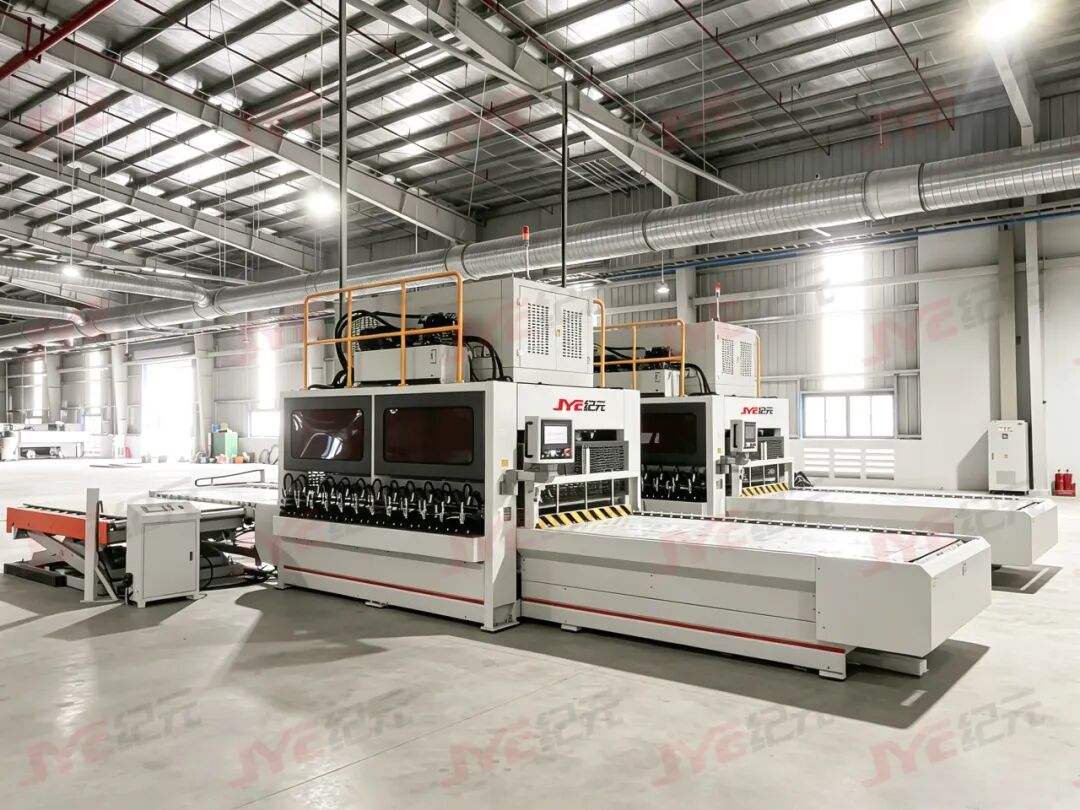

Difficult commissioning. Slow changeovers. Inconsistent precision. High O&M costs — these challenges are common across the industry. JYC's newly upgraded high frequency board joining machine delivers a systematic solution, engineered around the entire production workflow.
设备搭载智能控制系统，可根据板材厚度、拼接尺寸自动匹配压力、高频加热等核心参数，无需人工反复试错调试，真正实现一键式操作，整条生产线仅需一人即可完成值守，大幅降低人工成本。设备标配链板式输送带，运行平稳不跑偏，同时支持按需选配纳米级涂层免清胶输送链板、PP输送链板、6mm厚304不锈钢输送链板三类不同材质的输送部件，不同的链板可以互换，适配不同胶黏剂类型、不同板材材质的生产场景，从输送环节减少胶渍附着、板材刮伤等问题，拼板上台面也配有可拆装式防胶板，无需整体拆卸台面，更换过程快捷高效，彻底解决胶渍清理耗时久的问题。
The machine is equipped with an intelligent control system that automatically matches core parameters — pressure, high frequency heating, and more — based on board thickness and joining dimensions. No more repeated trial-and-error commissioning. True one-button operation means a single operator can oversee the entire line, dramatically cutting labor costs.

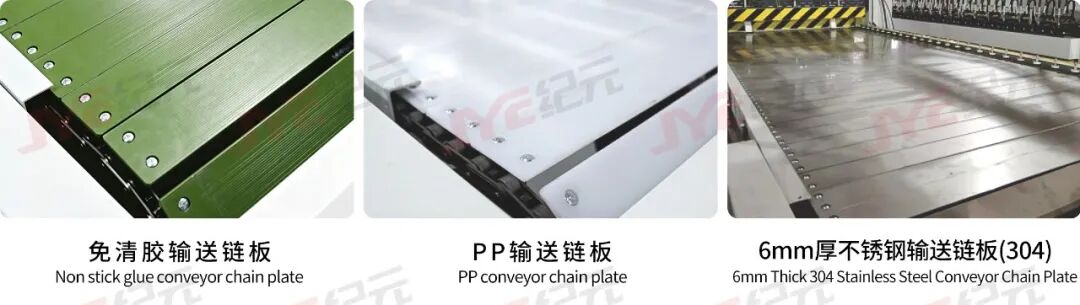

The press comes standard with a slat-type conveyor that runs smoothly with zero drift. On top of that, three slat options are available on request and are fully interchangeable:
Nano-coated glue-free conveyor— resists glue adhesion and reduces cleaning frequency;
PP (polypropylene) conveyor— lightweight, corrosion-resistant, ideal for standard adhesive workflows;
Stainless steel conveyor— built for heavy-duty use with aggressive adhesive types.
By selecting the right conveyor material, you can adapt to different adhesives and wood board materials, reducing glue buildup and surface scratching right at the conveying stage.
The press wordtable is also fitted with a removable anti-glue shield plate. No need to disassemble the entire worktable — just swap out the shield. Replacement takes minutes, not an hour, effectively eliminating the time-consuming glue-cleaning bottleneck.
在工件处理环节，设备标配链板式输送带送料，运行平稳快速，全程板条无错位；选配的可升降卸料台，实现无人卸料自动码垛，进一步向无人化生产迈进。整机工作台面经过退火处理，所有基准面均由CNC加工中心一次装夹完成加工，从根源上保障拼板的平面度与直线度，成品砂光预留量可控制在1mm以内，出材率较传统设备显著提升。
In the workpiece handling stage, the standard chain conveyor-type conveyor feeds boards smoothly and quickly, with zero slat misalignment throughout the entire run. The optional lift-up discharge table enables unmanned unloading with automatic stacking — a decisive step toward fully automated production.
The entire worktable is annealed to release internal stress, and all reference surfaces are machined in a single clamping setup on a CNC machining center. This guarantees flatness and straightness at the very source — the finishing sanding allowance can be kept within 1 mm, significantly improving board yield compared with conventional equipment.
核心配置上，整套动力与电控系统经过针对性优化升级，在长期高负荷运行场景下，既能保持稳定的动力输出，又能有效降低能耗与部件损耗，大幅延长设备整体使用寿命。同时整机电器元件全部采用西门子、施耐德、欧姆龙等国际知名品牌，从硬件底层减少故障发生率，再搭配远程维护通道，技术团队可快速响应排查问题，避免小故障演变为长时间停产，让生产节奏始终保持顺畅。
At the core, the entire drive and electrical control system has been optimized and upgraded for the long term. Under sustained high-load operation, it delivers stable power output while significantly reducing energy consumption and component wear — dramatically extending the machine's overall service life.

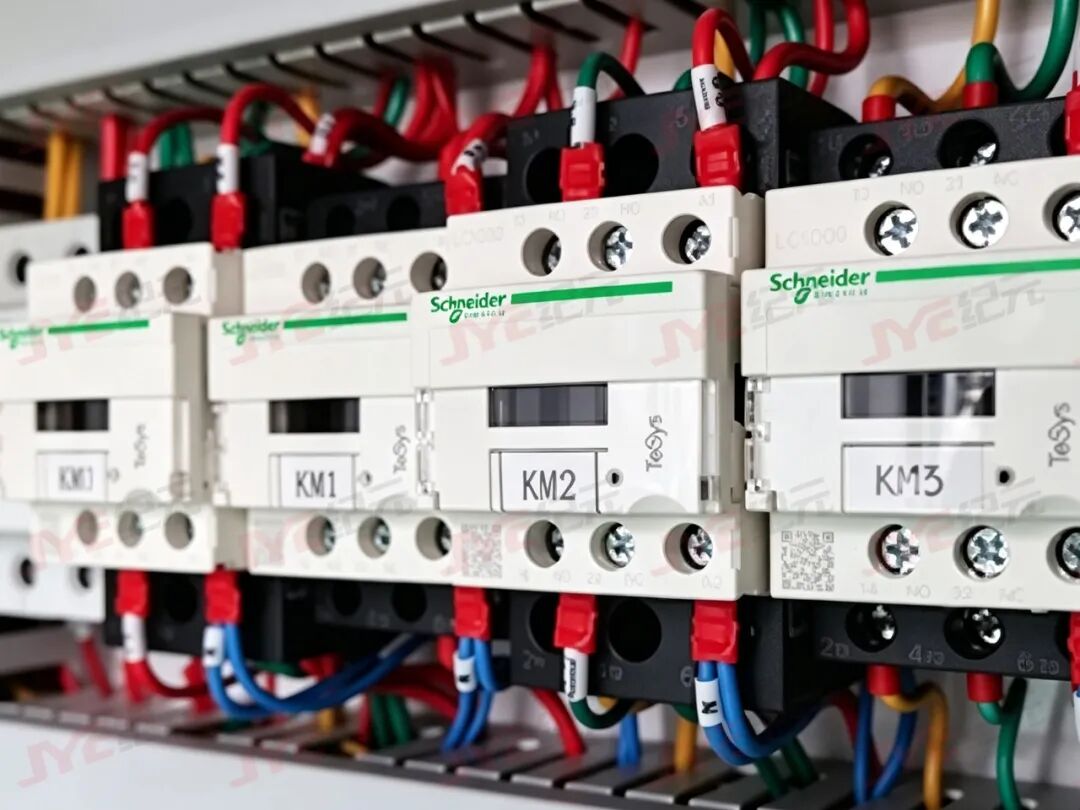

Every electrical component comes from globally recognized brands — Siemens, Schneider, and Omron — reducing failure rates at the hardware level from day one. Combined with a built-in remote maintenance channel, our technical team can respond and diagnose issues quickly, so minor faults never escalate into prolonged downtime. Your production rhythm stays smooth, shift after shift.
依托高频介质加热技术，设备胶合固化仅需60-90秒，胶合强度高，成品板面质量稳定、外形美观，生产效率较传统冷拼工艺提升3倍以上。对于实木家具、木门、集成材加工企业而言，一台能同时兼顾精度、效率、稳定性与运维便捷性的高频拼板机，正是降本增效的核心生产利器。
Powered by high frequency dielectric heating, the machine cures the glue joint in just 60–90 seconds — with strong bonding strength, stable board surface quality, and an attractive finished appearance. Production efficiency is more than 3× that of traditional cold pressing.
For solid wood furniture, wooden door, and glued laminated timber manufacturers, a HF board joining press that balances precision, speed, stability, and ease of maintenance isn't just an upgrade — it's the core tool for cutting costs and boosting output.
信息来源：纪元高频
