木材加工行业中，干燥是影响产品质量与生产效率的重要环节。木材含水率不均、厚料难以干透、干燥周期过长、开裂变形以及能源成本高等问题，长期困扰着众多木材加工企业。如何在保证木材干燥质量的同时，提高生产效率、控制加工成本？
In wood processing, drying is the step that decides both product quality and production efficiency. A familiar set of problems has long held back wood processing companies: uneven moisture content across the load, thick stock that will not dry through, drying cycles that run too long, cracking and deformation, and high energy costs. How do you raise production efficiency and keep processing costs under control while still protecting wood drying quality?
纪元高频木材真空干燥机，通过高频加热与真空干燥技术相结合，为木材干燥提供了新的解决方案。
The JYC high frequency (RF) vacuum wood dryer combines high frequency heating with vacuum drying technology — a new solution to the wood drying problem.
一、传统木材干燥，为什么效率与质量难以兼顾？
Why Is It Hard for Conventional Wood Drying to Balance Efficiency and Quality?

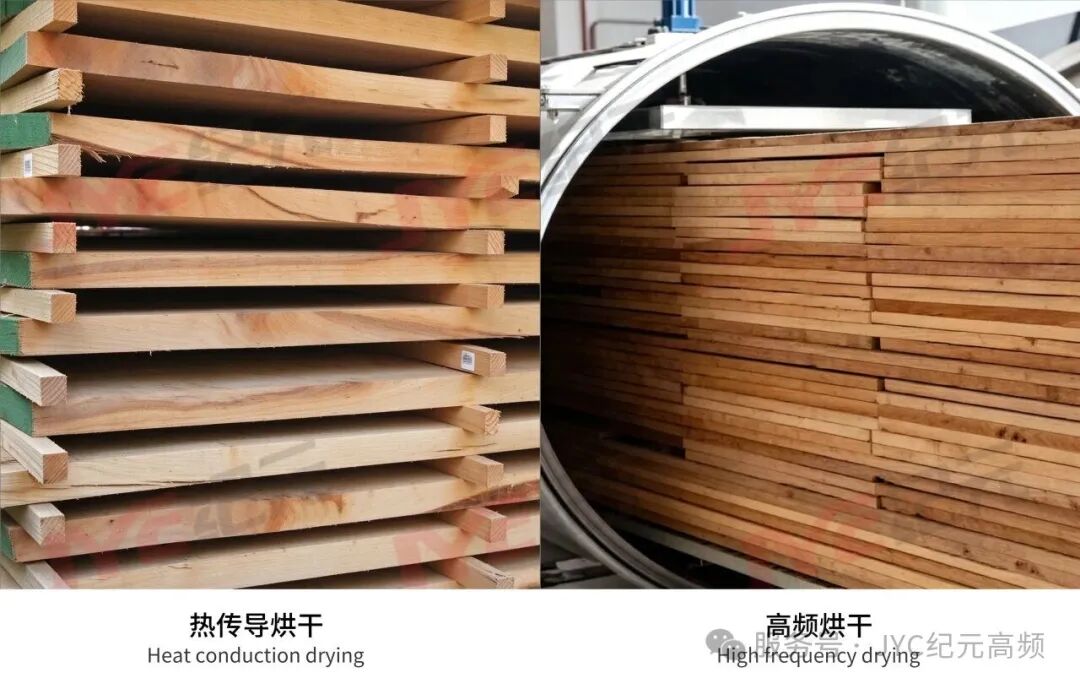

传统热风干燥主要依靠外部热空气传递热量，木材内部升温较慢，容易出现表面与芯部含水率不均的问题。尤其是厚木材、硬木等材料，往往需要较长时间才能达到目标含水率。
Conventional hot-air drying relies mainly on heated air to transfer heat from the outside in. The wood's interior heats up slowly, so the surface and the core often reach different moisture content. Thick stock and hardwoods in particular can take a long time to reach the target moisture content.
与此同时，木材在干燥过程中容易产生内应力，导致开裂、翘曲、变形等问题，影响后续加工和产品成品率。为了保证干燥效果，企业还需要投入较长的生产周期，增加场地占用、库存周转和综合生产成本。
At the same time, wood develops internal stress during drying, which causes cracking, warping and deformation and reduces yield in downstream processing. To protect drying results, companies have to accept longer production cycles, which means more floor space tied up, slower inventory turnover and higher overall production costs.
对于追求稳定品质与高效生产的木材加工企业而言，选择更适合的木材干燥设备，是提升生产效率的重要一步。
For wood processing companies that want consistent quality and efficient production, choosing better-matched wood drying equipment is an important step toward higher production efficiency.
二、纪元高频木材真空干燥机，有哪些技术优势？
What Are the Technical Advantages of the JYC High Frequency Vacuum Wood Dryer?
1. 高频加热，提升木材干燥效率
High Frequency Heating Raises Wood Drying Efficiency

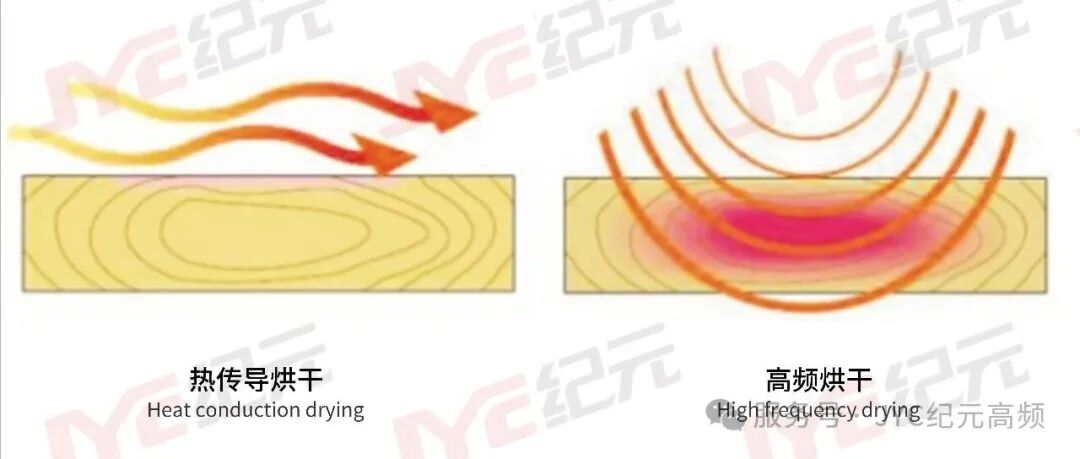

纪元高频木材真空干燥机利用高频电场对木材进行加热，使木材内部水分受热汽化，并在压力差作用下向外排出，减少传统热风干燥由外向内传热带来的效率限制。
The dryer heats the wood with a high frequency electric field. Moisture inside the wood vaporizes under heat and is driven out by the resulting pressure difference — removing the efficiency limit that conventional hot-air drying runs into when heat has to travel from the outside in.
不同木材的干燥周期会受到木材树种、初始含水率、装载量及目标含水率等因素影响。与传统干燥方式相比，高频木材真空干燥有助于提升干燥效率。
Drying cycle time varies with wood species, initial moisture content, load volume and the target moisture content. Compared with conventional drying, high frequency vacuum wood drying helps shorten the cycle.
2. 内外均匀干燥，降低开裂变形风险
Uniform Drying Inside and Out Reduces the Risk of Cracking and Deformation

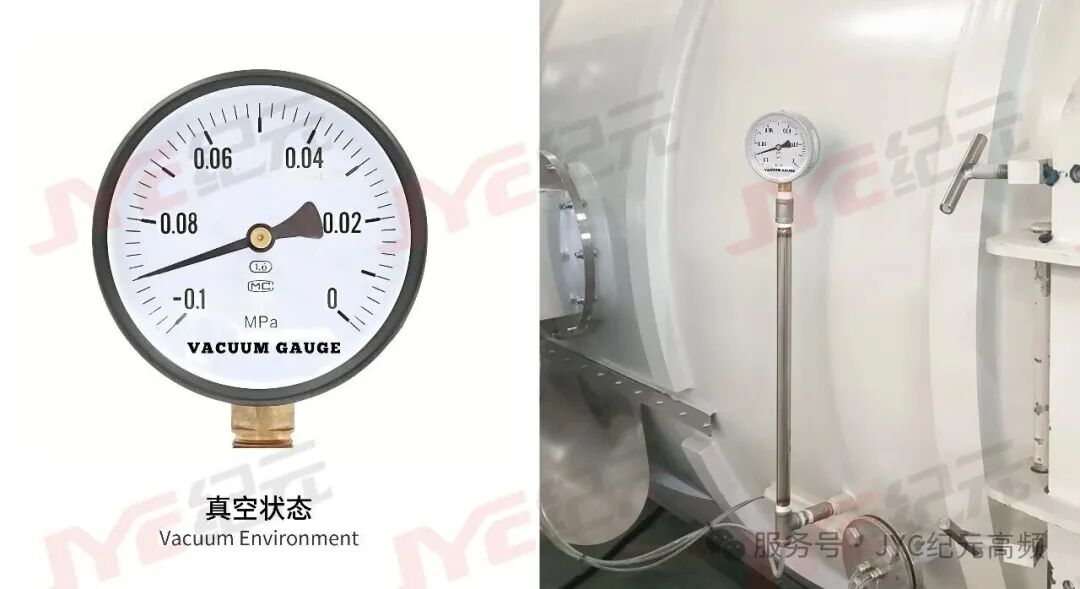

木材干燥不仅要快，更要干得均匀。纪元高频木材真空干燥机采用高频加热与真空环境相结合的方式，通过降低环境压力，降低水的沸点，使木材在较低温度下快速排出内部水分，提升干燥效率。同时，配备垂直加压结构，有助于减少木材翘曲变形，提升干燥后的平整度与尺寸稳定性。
Wood drying is not only about speed — it also has to be even. The JYC high frequency vacuum wood dryer combines high frequency heating with a vacuum environment. Lowering the ambient pressure lowers the boiling point of water, so the wood releases its internal moisture quickly at a lower temperature, which speeds up drying. The machine is also fitted with a vertical pressing structure that helps reduce warping and deformation and improves flatness and dimensional stability after drying.
对于对平整度和加工质量要求较高的木材，均匀干燥有助于减少后续加工中的质量损耗。
For wood that has to meet high requirements for flatness and machining quality, uniform drying helps cut quality losses in downstream processing.
3. 适应不同木材加工需求，拓展加工范围
Adapts to Different Wood Processing Needs and Widens Your Processing Range

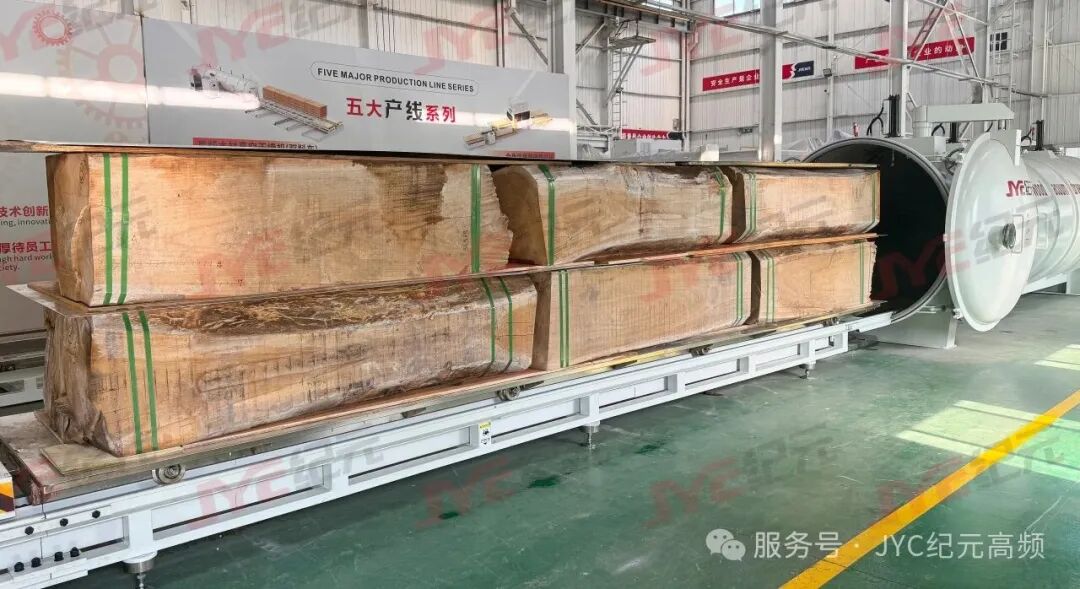

针对超厚木材，高频磁场可实现内部与外部同步加热，促进水分均匀排出，改善厚木材干燥的均匀性。
For extra-thick timber, the high frequency magnetic field heats the inside and outside of the wood at the same time, which promotes even moisture release and improves drying uniformity in thick stock.

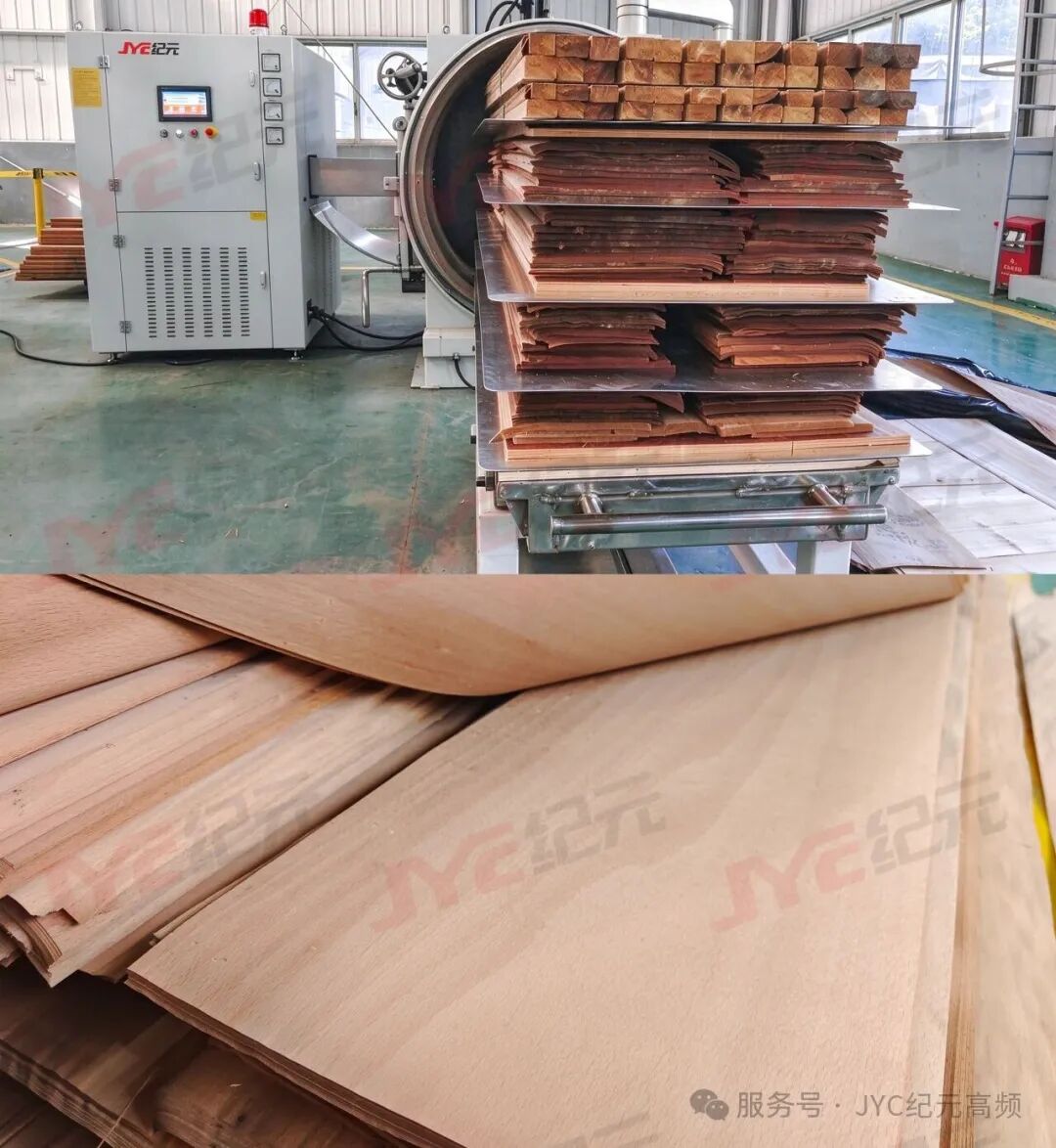

针对木皮，采用叠加压合与高频穿透加热相结合的方式，在真空环境下进行干燥，有助于减少木皮变色、保持表面平整，并实现含水率的有效控制，满足不同木材的干燥加工需求。
For veneer, stacked pressing is combined with high frequency penetrating heating, and drying takes place in a vacuum environment. This helps reduce veneer discoloration, keep the surface flat and deliver effective control of moisture content, meeting the drying requirements of different wood materials.
4. 智能化控制，降低操作管理压力
Intelligent Control Reduces Operating and Management Load

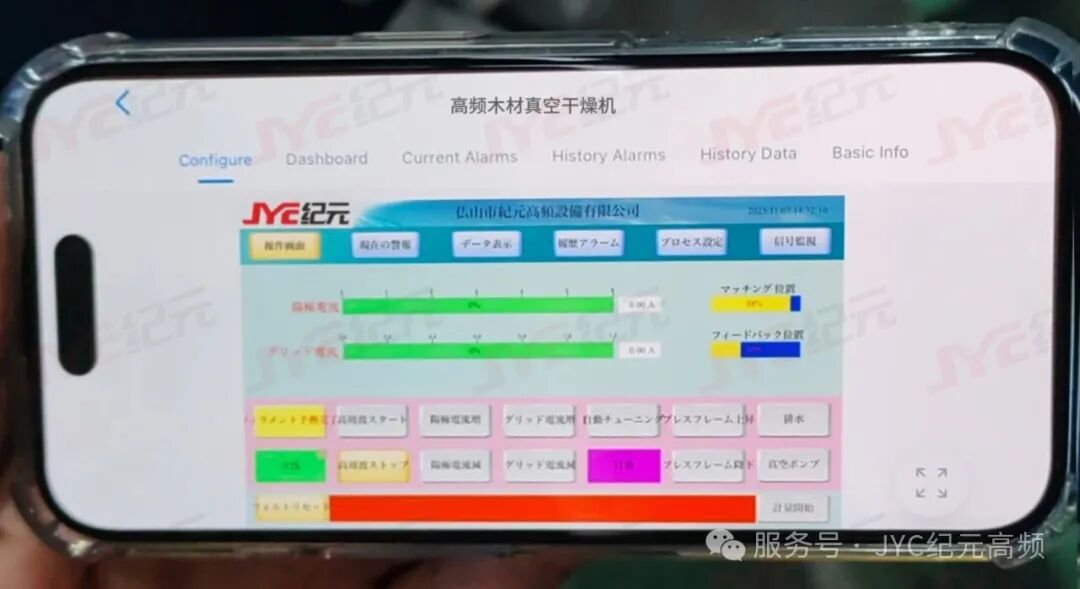

纪元高频木材真空干燥机采用自动化操作控制系统，支持远程监测与维护，并配置多路光纤测温系统，实现木材温度的精准监测。系统可根据工艺需求预存多种干燥工艺，并通过水分沸点与温度的智能匹配，优化干燥过程。自动化控制有助于减少人工操作环节，让木材干燥过程更加规范、可控。
JYC High frequency(radio frequency) wood vacuum dryer uses an automated operation and control system with remote monitoring and maintenance. A multi-channel fiber-optic temperature measurement system provides precise monitoring of wood temperature, and multiple drying recipes can be pre-stored to match process requirements. The system intelligently matches water boiling point with temperature to optimize the drying process. Automated control reduces manual handling and makes wood drying more standardized and more controllable.
三、控制干燥成本，让生产效益更清晰
Controlling Drying Costs Makes Production Returns Clearer
木材干燥成本不仅包括设备运行能耗，还涉及人工、场地占用、生产周期、材料损耗及返工等多个方面。通过缩短干燥周期、改善干燥均匀性、降低变形风险，企业有机会进一步提高生产周转效率，减少不必要的质量损耗。
The cost of wood drying is not just the energy the equipment consumes. It also covers labor, floor space, production cycle time, material loss and rework. By shortening the drying cycle, improving drying uniformity and reducing the risk of deformation, companies can raise production turnover efficiency and cut unnecessary quality losses.
四、选择合适的木材干燥方案，为生产创造更多价值
Choosing the Right Wood Drying Solution Creates More Value for Production
从干燥速度到木材稳定性，从厚料处理到自动化控制，木材干燥设备的价值，最终体现在生产效率、产品质量与综合成本上。
From drying speed to wood stability, from thick stock handling to automated control, the value of wood drying equipment ultimately shows up in production efficiency, product quality and overall cost.
纪元高频专注于高频木工机械及相关应用，致力于通过高频技术与设备方案，帮助木材加工企业解决实际生产中的干燥难题。
JYC focuses on high frequency woodworking machinery and its applications, and is committed to solving real drying problems in wood processing through high frequency technology and equipment solutions.
纪元高频，让木材干燥更高效，让生产管理更可控。
JYC — more efficient wood drying, more controllable production management.
