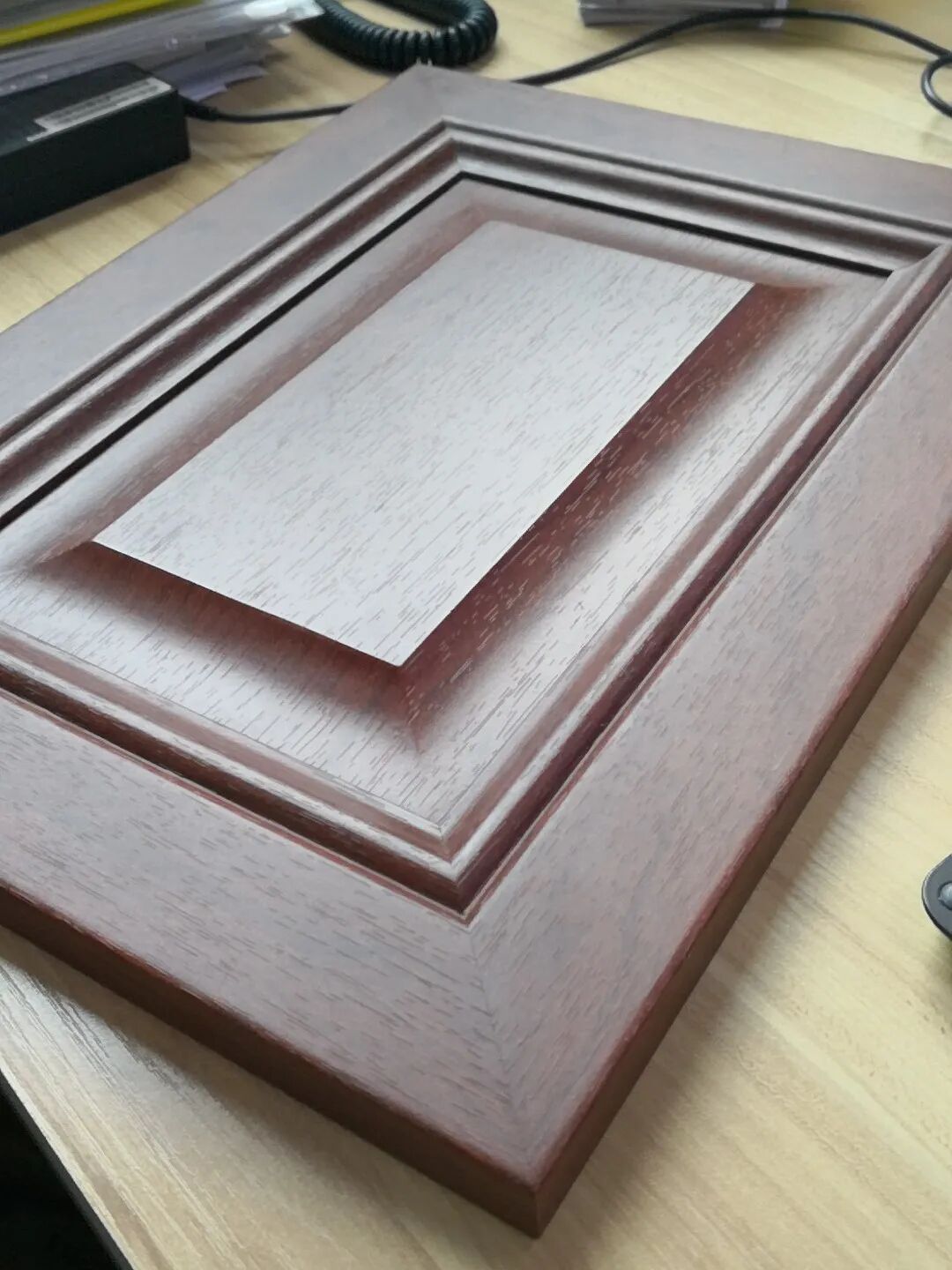

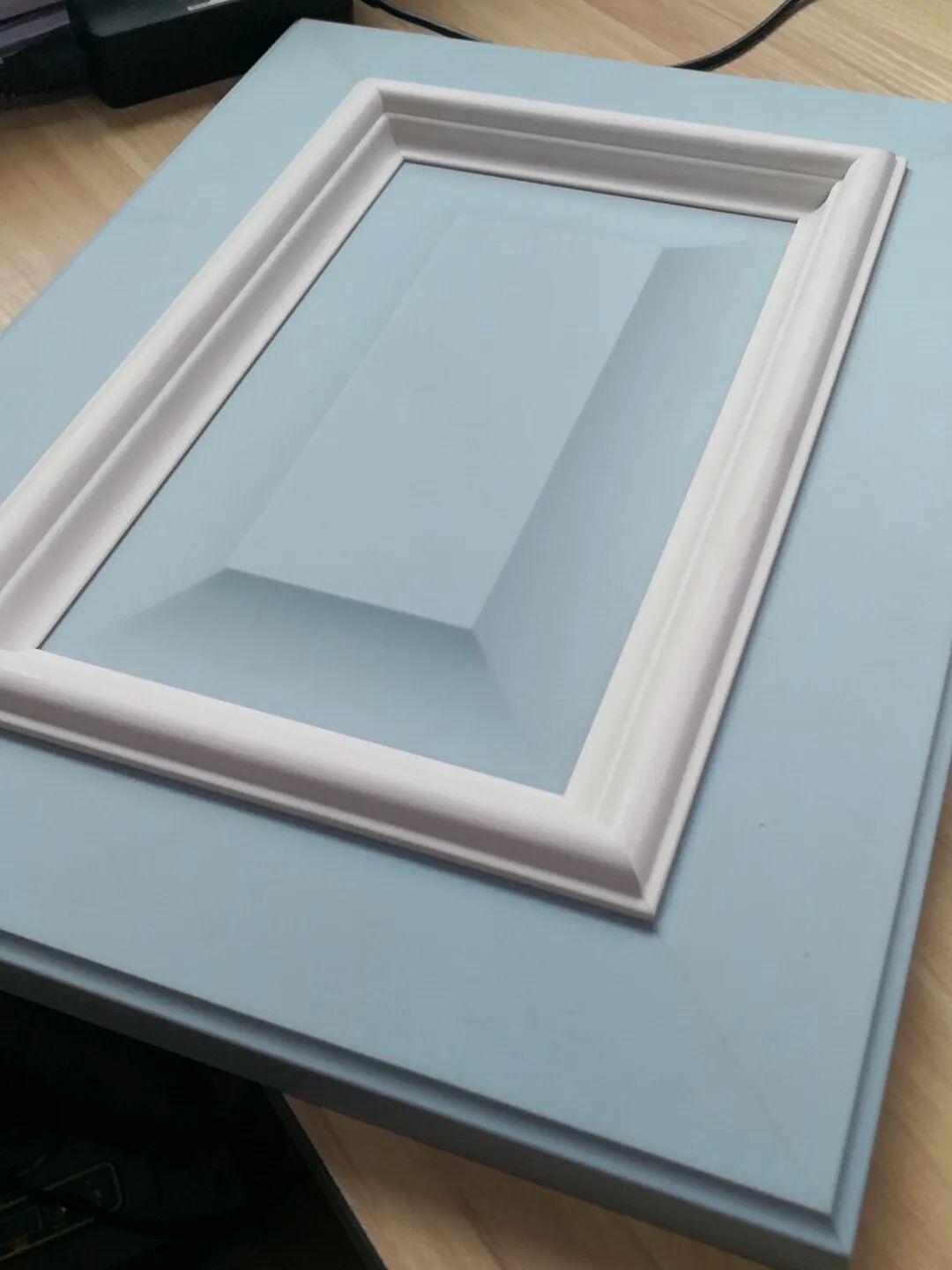

在橱柜、衣柜定制行业中，45°角拼接柜门凭借独特优势成为越来越多高端柜门生产的首选，无需额外封边，型材自然，转角形成流畅线条，视觉上一体感更强；同时，角部接触面积更大，胶合与结构应力分布更均匀，长期使用不易出现翘边、开裂等变形问题。然而，工艺优势要转化为稳定产能，必须依赖精密可靠的自动化设备。针对45°角组框，纪元高频柜门组框一站式解决方案，帮助工厂实现“提质、降本、增效”的生产升级。
In the custom cabinet and wardrobe industry, 45° miter joints are becoming the go-to choice for high-end cabinet doors. No edge banding needed — the profile itself creates a clean, seamless corner with a naturally flowing line. The look is more integrated, more premium. On top of that, the larger contact area at each corner means glue distribution and structural stress are more evenly spread, so you won't see warping, peeling, or cracking down the road.
But turning that manufacturing edge into consistent, high-volume output? That takes precision automation you can count on. That's exactly what JYC all-in-one high frequency frame assembly solution delivers — helping factories level up with better quality, lower costs, and higher efficiency.
一、数控自动断料——从源头锁住尺寸精度
CNC Auto Cutting: Lock Down Accuracy Right from the Start

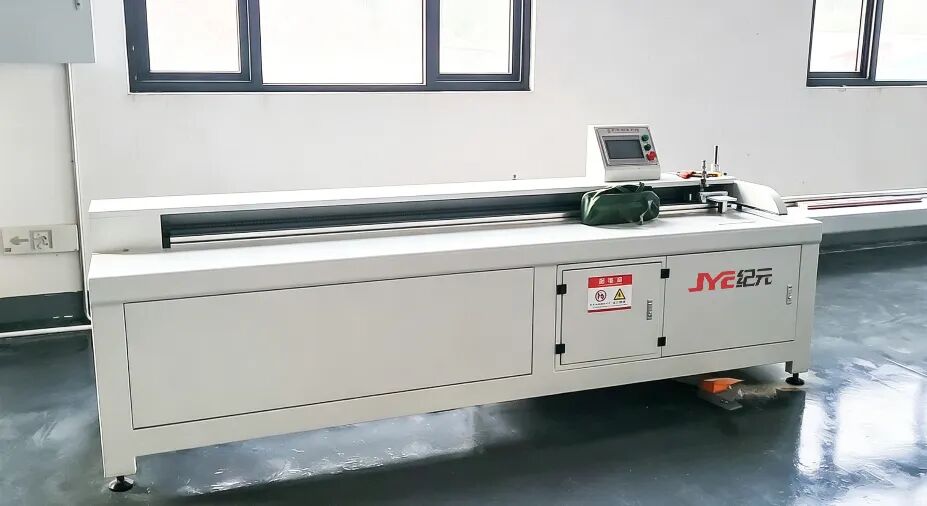

断料是误差累积的起点。传统手工锯切依赖人工画线、推送，不仅效率低下，更易因材料抖动或测量偏差导致长度参差不齐。纪元方案配备数控自动断料系统，只需输入目标尺寸，设备即可自动定长送料、高速裁切，裁切断面光滑无崩边、无毛刺，从源头严控误差。精准的断料为后续45°切角提供可靠基准，避免“因料不准而反复修整”的浪费。
Cutting is where errors begin to stack up. Traditional manual sawing relies on hand-measured markings and manual feeding — slow, inconsistent, and prone to dimensional drift from material movement or measurement mistakes.
JYC solution comes with a CNC auto-cutting system. Just enter the target dimensions, and the machine automatically feeds and cuts at high speed. The cut surface comes out clean — no chipping, no burrs. Dimensional accuracy is locked in from day one, giving the downstream 45° miter cut a solid, reliable baseline. No more re-trimming because the stock wasn't cut right.
二、锯钻一体化——切角与打孔一次完成，严丝合缝
Integrated Saw & Drill: Miter Cut and Hole Drilling Done in One Pass

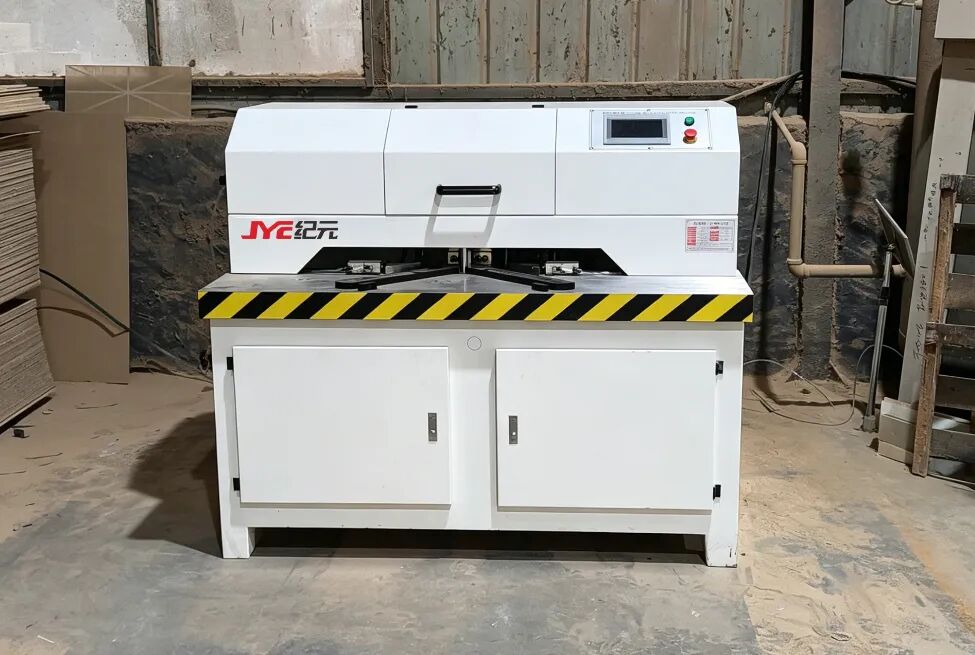

45°角拼接的核心难点在于切角精度与孔位一致性。传统分序加工中，切角机与打孔机分开操作，二次装夹极易产生位置偏移，导致拼角缝隙大、组装孔错位。纪元将45°锯切与数控钻孔集成于同一工位，型材一次定位即可同步完成切角与打孔。切面平整光滑，切角标准规整，两片型材对接后缝隙微不可察，无需刮腻修色；同时，组装孔规整无毛刺，省去人工修孔工序，孔位坐标由程序控制，确保每扇柜门的五金安装位一致，为后续快速组框扫清障碍。
The hardest part of 45° miter joinery? Keeping the cut angle precise and the hole positions consistent. In traditional multi-step setups, the miter saw and drill press are separate operations. Re-clamping between steps shifts things — and that shift shows up as gaps at the corners and misaligned assembly holes.

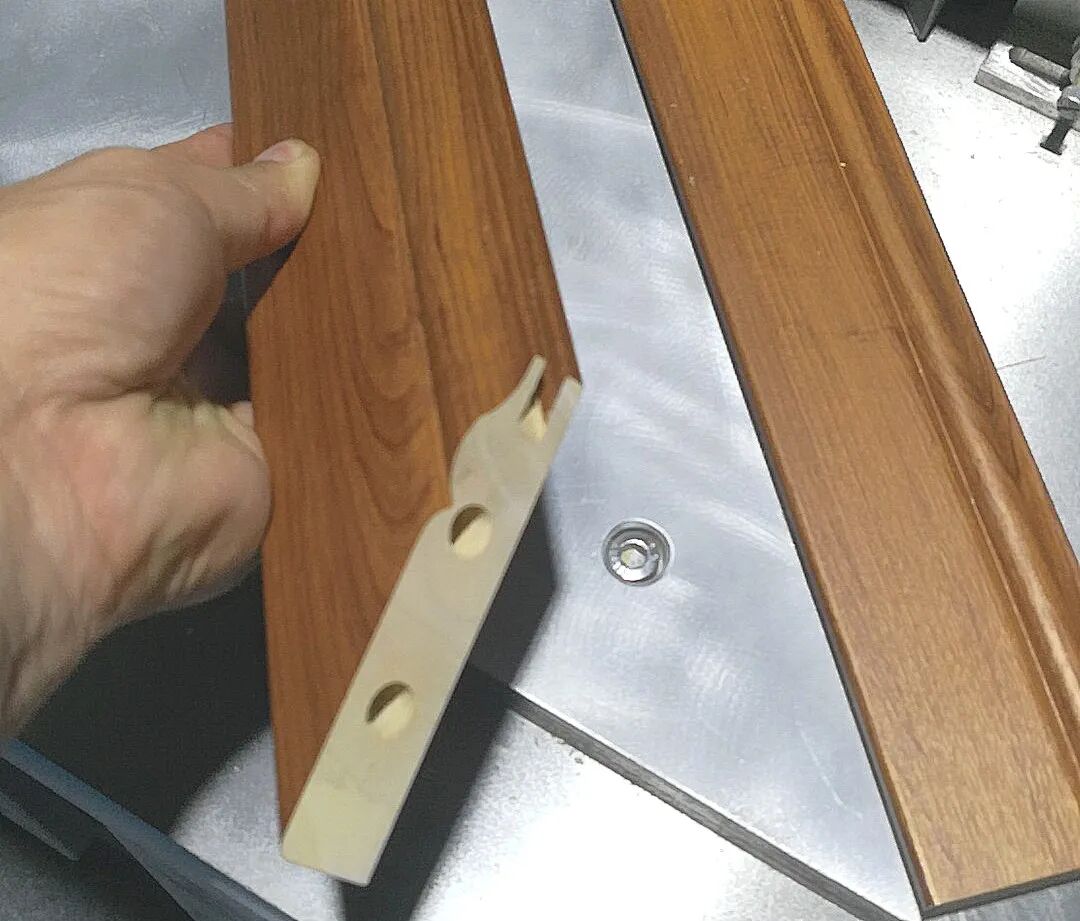

JYC integrates 45° sawing and CNC drilling into a single workstation. One setup, one pass — cut and drill at the same time. The miter face comes out flat and clean. When two profiles come together, the gap is nearly invisible — no filler, no touch-up. And the assembly holes? Clean, burr-free, and programmatically positioned so every hardware mounting point lines up perfectly, door after door. The groundwork for fast frame assembly is already laid.
三、高频精密组框机——5~15秒免钉固化，四边同步施压
High Frequency Frame Assembly Press: Cured in 5–15 Seconds, All Four Sides Pressed Simultaneously
这是整套方案的核心突破。传统冷压组框需数小时等待胶水凝固，且四边压力不均，极易造成对角线误差；而热压又常因整体加热导致型材变形、能耗高。纪元高频组框机采用高频介质加热技术，仅对胶缝区域选择性加热，5~15秒内即可达到固化强度，设备四边同步施压，压力与加热时间由PLC精准调控，无论柜门尺寸大小，均能保证四角受力均衡、对角线一致，成品尺寸统一性极高。从根源避免后期开胶、开裂问题，整批成品尺寸统一、精度一致，废品率大幅降低，同时能耗更低，节能环保。
This is the heart of the whole system.
Traditional cold-press frame assembly takes hours for the glue to set, and uneven pressure across the four sides often leads to diagonal measurement errors. Conventional hot press, on the other hand, heats the whole piece — which warps profiles and burns energy.
JYC high frequency frame assembly machine uses dielectric heating technology to selectively heat only the glue joint area. Cure strength is reached in just 5 to 15 seconds. All four sides press simultaneously, with pressure and heating time precisely controlled by PLC — no matter the door size, every corner gets even force, and the diagonals stay consistent.
The result: finished dimensions are uniform across the entire batch. No glue failure, no cracking later. Reject rates drop significantly. And because only the joint is heated, energy consumption is lower — cleaner and more sustainable.
整套流程从断料、锯钻到组框连贯自动化，精简多道人工工序，大幅减少人力投入、缩短生产周期。完美适配45°角柜门大批量标准化加工，既发挥了45°角柜门的产品优势，又彻底解决传统工艺弊端，是家居企业升级智能制造、降低生产成本、提升市场核心竞争力的优选设备，助力家居企业迈向智能、高效、可持续的制造未来。
From cutting to saw-drilling to frame assembly — the entire process runs in one connected, automated flow. Multiple manual steps are eliminated. Labor input drops. Lead times shrink.
This system is purpose-built for high-volume, standardized 45° miter cabinet door production. It brings out everything that makes 45° joinery great, while fixing every pain point of the old way of doing things.
For furniture manufacturers looking to move toward smart manufacturing, cut production costs, and sharpen their competitive edge — this is the setup that gets you there.
